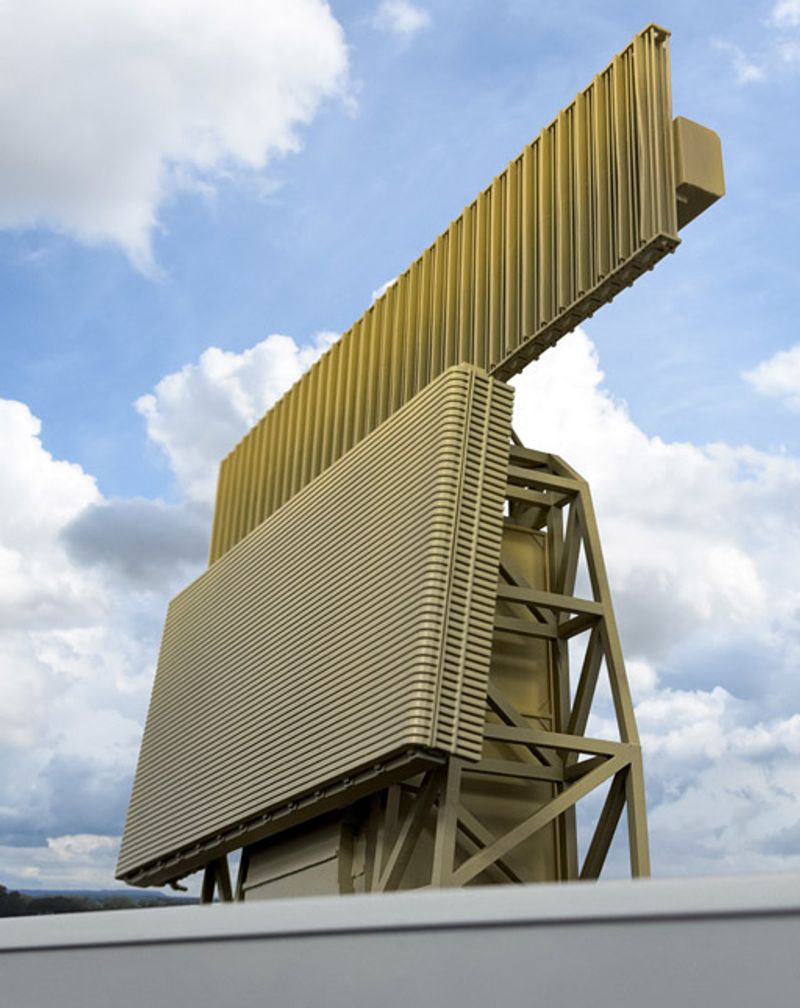

RL–3000

RL–3000

3D LONG RANGE AIR SURVEILLANCE RADAR

RL-3000 is a fully software-defined 3D long- range air surveillance radar system that provides three dimensional surveillance information. These information are provided to a system with a comprehensive situational overview of aerial situation. RL-3000 detects all threats within the declared detection range.

The radar is determined for continuous monitoring of airspace, detection and classification of individual types of objects with different Radar Cross Section (RCS) and speed.

The system uses the latest processing technology utilizing a powerful fail soft architecture and advanced detection and extraction algorithms. Therefore it is capable to process large amounts of data and adaptively suppress not only ground clutter but also sea clutter.

The radar can be extended with an MSSR (Monopulse Surveillence Secondary Radar) system having full Mode S interrogator capability, or IFF (Identification Friend or Foe) interrogator capability.


System characteristics

Key features
  • Advanced solid-state 3D PSR sensor with MSSR sensor extension possibility
  • AESA antenna using stacked beams in elevation
  • GaN technology
  • Fully digital radar integrating T/R modules with digital signal distribution and processing
  • Output peak power: 70 kW for PSR
  • Software defined radar (SDR), utilizing highly modular architecture
  • Programmable operating modes
  • BITE diagnostics up to LRU level
  • Automatic system of local and remote diagnostics and control (optional manual override in combat mode)
  • Operating bandwidth from 2.9 to 3.1 GHz
  • Frequency agility
  • Electronic Counter – Counter Measure (ECCM)
  • Automated / Manual selection of operating frequency, transmitted waveform and EMCON
  • Operational availability:
> 99%
  • MTBCF:
> 3,500 hours
  • MTTR:
< 45 min.
  • Prevention maintenance:
60 hours / year
Data outputs
  • Standard data outputs in ASTERIX Cat 048/034
  • Weather data output in ASTERIX Cat 008/009
Configuration, installation and integration
  • Standalone installation
  • Standalone installation extended with MSSR system (or IFF system) and ELDIS GCI system (ERDIS)
  • Simple integration into national airspace surveillance network
  • Integration and adaptation with existing national command and control systems

Basic Parameters

Operating frequency:
S-band (NATO E/F-band)
Instrumented range:
240NM
Instrumented detection altitude:
up to 100,000 feet
Elevation coverage:25°
Refresh rate:
selectable (from 6 to 10 seconds)

Download

  • Datasheet
