Radar Modernizations

We are performing also modernisations of older radar systems, here are few exaples of radar modernisations, which eldis pardubice company already made.

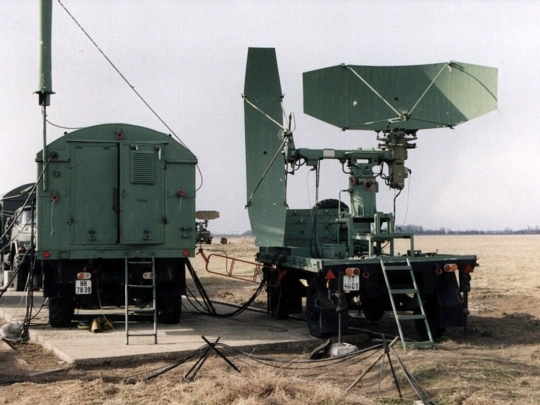

RSP–10
RSP–10
RSP-10 Radar – (PAR + ASR) complete modernization and digitizing (keeping the existing mechanical antenna systems), replaced by up-to date technology, e.g.: receiver, IF circuits, local oscillator, protection + STC, RDE, LMCS/RCMS, fibre optics transmission, workstations, etc.

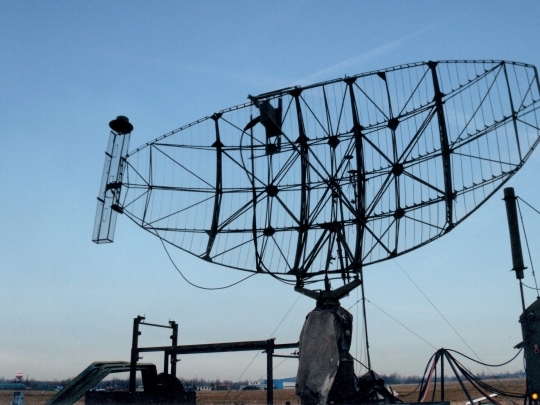

ASR
ASR
ASR – Part of RSP-10 Radar. Modernisation variants of the transmitting part differ in component complexity and price: single frequency, selection between two pre-set frequencies or any frequency tuning. Display system characteristics meet ICAO and EUROCONTROL standards related to workstations for the air traffic control, e.g. ACC, APP, TWR.

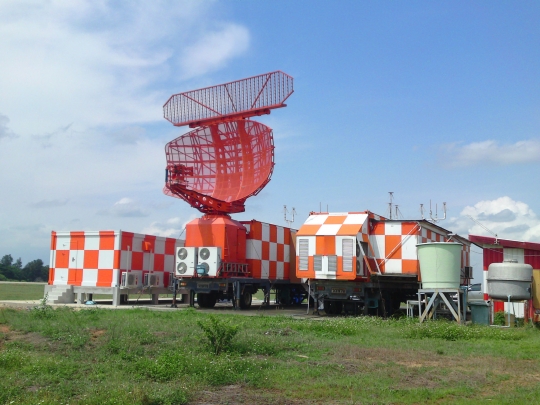

PSR
PSR
Primary surveillance radars (PSR) Tesla / Toshiba / NEC – Complete modernization and digitalization (keeping the existing mechanical antenna systems), replaced by up-to-date technology, e.g.: receiver, IF circuits, local oscillator, protection + STC, RDE, LMCS/RCMS, optics transmission, workstations, ATC system for airport tower, etc.

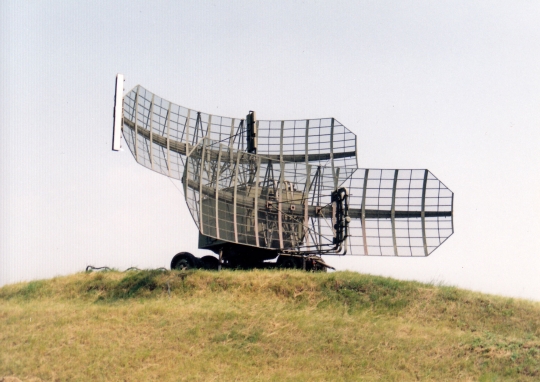

P-37
P-37
P-37 primary surveillance radar (PSR) – Complete modernization and digitalization (keeping the existing mechanical antenna systems), replaced by up-to date technology, e.g.: modular transmitters and receivers, IF circuits, LCMS/RCMS, data transmission via OFC, workstations, etc.

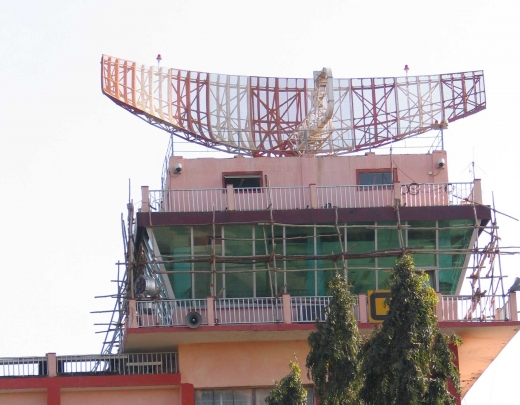

L–BAND
L–BAND
L-band airport surveillance radar – Complete modernization and digitizing (keeping the existing mechanical antenna systems), replaced by up-to date technology, e.g.: receiver, IF circuits, local oscillator, protection + STC, RDE, LMCS/RCMS, optics transmission, workstations, ATC system for airport tower, etc.

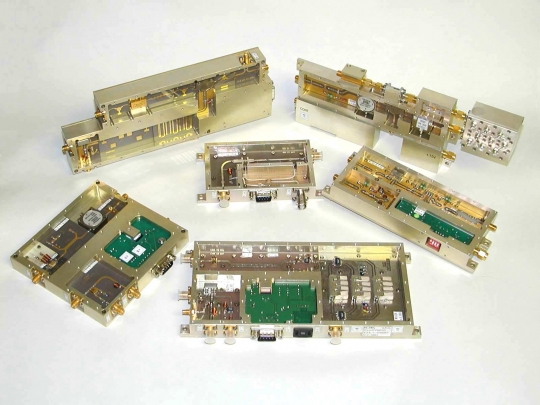

MPR 3–D
MPR 3–D
MPR 3-D Radar – Research, development and production of receivers for 3-D Radar in Germany (military version).
